Aruba JL805A Instant On 1960 12-Port 10G Managed Switch with 4 SFP+ | High-Speed Network Switch for Small Business & Office Networking

HPE Networking Instant On Switch 12p 10GBT 4p SFP+ 1960 [JL805A]

Aruba Instant On 1960 are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What's New

Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.

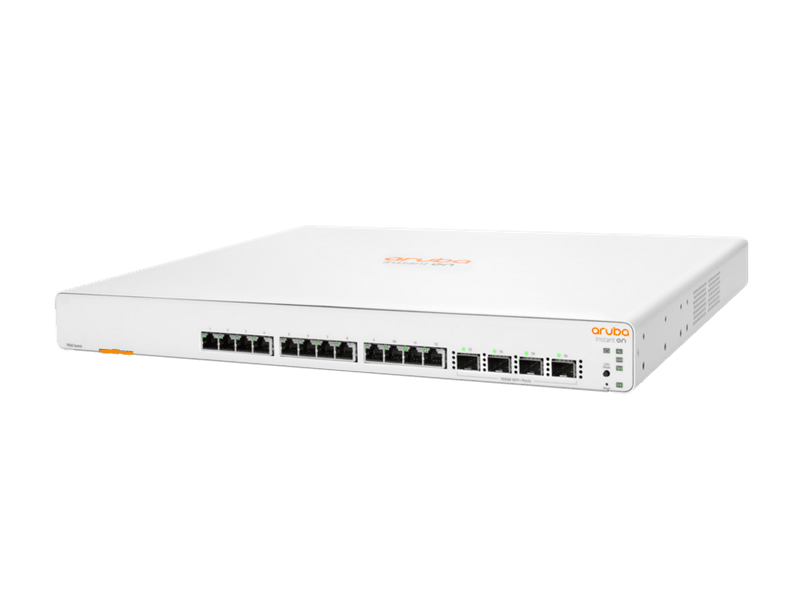

The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Limited Lifetime Warranty.

Specifications

Category	Specifications
Differentiator	Advanced 10G, smart-managed stackable switch designed for business networks and workgroups needing ultra-high performance. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address.
Power Consumption	Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W
Input Voltage	100 - 240 VAC
Ports	12 RJ-45 100/1000/10GBASE-T ports, 4 SFP+ 10GbE ports
Switching Capacity	320 Gbps
Stacking Capabilities	4H height
Throughput	238 Mpps
Memory and Processor	Single Core ARMv7 Cortex-A9 @2Ghz
Operating Temperature	0-40°C, 0-10,000 ft
Management Features	Aruba Instant On Cloud; Web browser; SNMP Manager
Warranty	Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Weight	4.3 kg (9.6 lb)
Dimensions	35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)
Additional Features	Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at any time.
